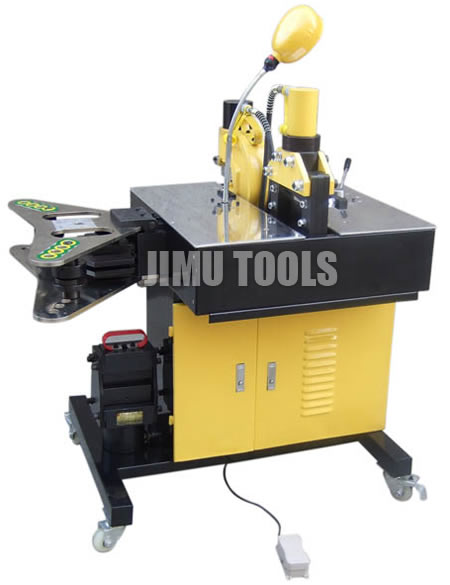

Item No:VHB-501 Busbar Processing Machine

VHB-501 bus machine Observing

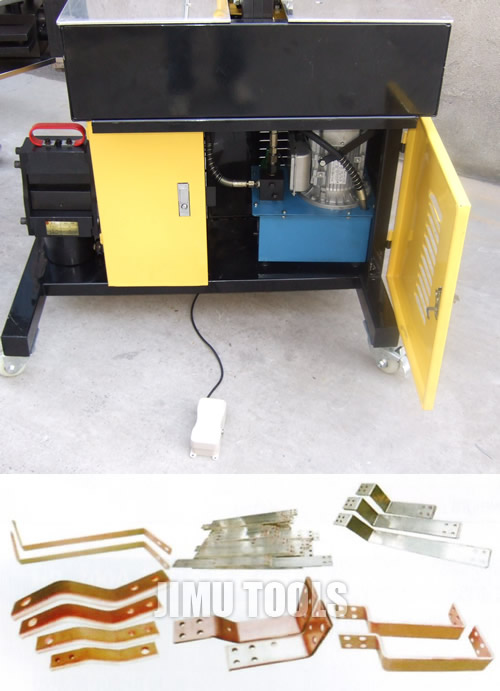

Function: copper and aluminum row shearing, punching, Ping Li bending, embossing. This is a combination of multiple functions of the professional body design, perfect to avoid consideration of human waste, that is, provincial working hours, in line with established work processes, so that in the staff handy, resulting in high efficiency, high quality perfect work; manual control valve is clearly the direction of deployment of the function of the working machine.; whole set of equipment including electric hydraulic pump, cut row machine, punching machine, flat stand bending machine and embossing machine all rows Integration in Mobile car installation. conducive to the flow in the workshop or field operations. the machine and high flexibility, small size and strong function, high production capacity and efficiency. Is the production of large electric transmission and distribution boxes and construction site construction projects essential tool.

Standard equipment:
VHB-501; electric hydraulic pumps, cutting, piercing, bending, vertical bending tools, embossing machine bus
Bus Machine Hydraulic Specifications:

¡ñ electric pump input voltage: single 50HZ, 220V or 380V
Rated hydraulic: 700kgf/cm2 (UHP safety valve setting) 10000 (Psi)
¡ñ Cutting row machine output: 30ton
Row range of cut (mm): copper and aluminum row of ≤ 200 × 12
¡ñ Punching Machine output: 35ton
The distance to the row of holes in the side: 110mm
Standard package punching die: Punch Φ7mm, Φ9mm, Φ10.5mm, Φ13.8mm, Φ17mm, Φ20.5mm
(Also die size can be customized according to demands long hole)
¡ñ Li, CB-125D bending tool bending, vertical bending two functions, aluminum, copper width 40,50,60,80,100,125 mm thickness 4,5,6,8,10,12.5 mm;

¡ñ Bus embossing machine: for bus: 150 × 12.5mm
Working stroke (mm): 30 after the bus voltage is smooth (or pattern neatly), far larger substation maintenance cycle
Features:
¡ñ overall shape appearance, easy to move the surface paint, and die by the phosphoric acid rust treatment skin, wear-resistant impact;
¡ñ precise guidelines four directions easy to operate valve
¡ñ hydraulic pump with pressure gauge shows the pressure to avoid the overload of work,
¡ñ Manual operation device remote control or foot switch, easy to use
¡ñ environmental surface treatment table, after grinding and chrome table, the table presents a smooth precision;
¡ñ 15cm affixed with the ruler, can get the job sizes up to standard parameters;
¡ñ hand adjustable board seat, for long and short size standards, a unified control practices;
¡ñ security firm, the foot switch that controls the forward, back to the oil;
¡ñ focus on the design of copper shavings litter bags and opened his mouth and out the mouth, slide-type can be cut, wearing copper scrap bar sinks, will not be filled full of the messy;
