Item No:FSH-14 Hydraulic Flange Spreader

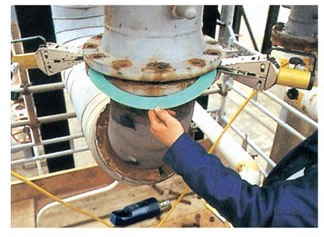

Suitable for maintenance, repair, testing and application of valve replacement

The whole concept of separation wedge: no friction, parallel to the normal movement

Flange damage and eliminate the risk of damage to isolated wedge

Unique interlocking wedge design - the first level without risk of bending without slippage

Population size of only 6mm insert requirements

Zhang arm design with step so that each cell can withstand full load step

Less moving parts, durable, easy to maintain

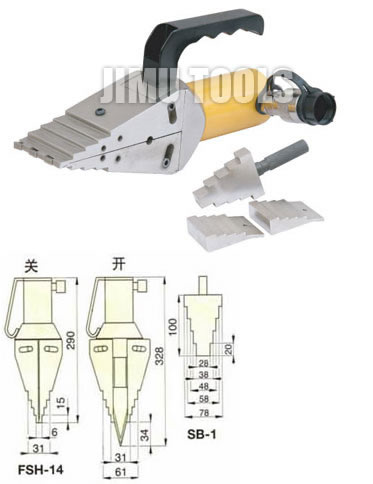

Model: FSH-14
Ability to work ton (KN): 14 (125)
Top of the gap (mm): 6
Maximum separation thickness (mm): 81
Separation Type: Hydraulic
Oil (cm3): 78
Weight (Kg): 7.1
