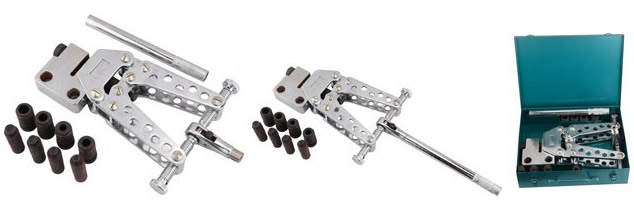

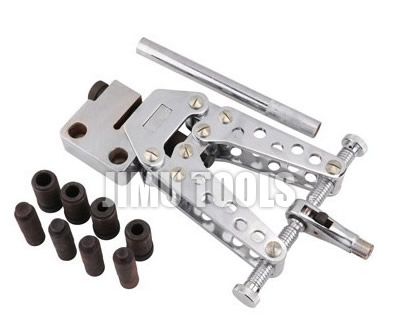

Item No:MH-10 Mechanical Punching Tool

Product Name: mechanical punching tools
1, Model: MH-10
2, the applicable range: <40 <110 (A3F)
3, to allow the plate thickness mm: <10
4, Dies diameter (mm): Φ11Φ13Φ17Φ19Φ21
5, Weight kg: 16
6, L × W mm: 360 × 250
7, the output KN: 300
8, the hand moving force KN: <0.25
9, the main material: steel

Function Description

First, the performance characteristics:
1, a portable mechanical drilling machine the use of leverage, screw force operation convenient, high efficiency punching punch hole only 20-30 seconds
2, the main force head selection of ultra-high-strength alloy steel, with a light weight, durability, and carrying convenience features.
3, the design of the structure is simple, easy to operate, require no power, provincial, effort. Especially suitable for high-altitude operations.

Second, the purpose and scope of application:
Power sector 10KV distribution network crossarm Tower reaming repair the hole, opening; plants, substations, copper and aluminum busbars
Equipment, clamp, flat steel, and other openings.
2, railways, post and telecommunications, petroleum, geological, construction industry overhaul reinforcement. Because the machine does not require electrical energy, in particular
Apply to wild, high-altitude and underwater operations.

Third, easy to operate:
1, choose the desired aperture supporting punching, die. Installed in the head of the host mode.
2, the workpiece inserted into the die opening, aligned with the engraved lines, rotating the die clamping work.
3, shake the handle, punch pressure can be out of the hole.

Fourth, note:
Operation before check portable mechanical drilling machine punches, die corresponding supporting, otherwise it will damage the host.
2, before punching die must first rotary compression work.
3, during the operation, such as abnormal failure should stop punching, troubleshooting, so as not to damage the parts.
4, screw, wire mother should normally grease lubrication.
