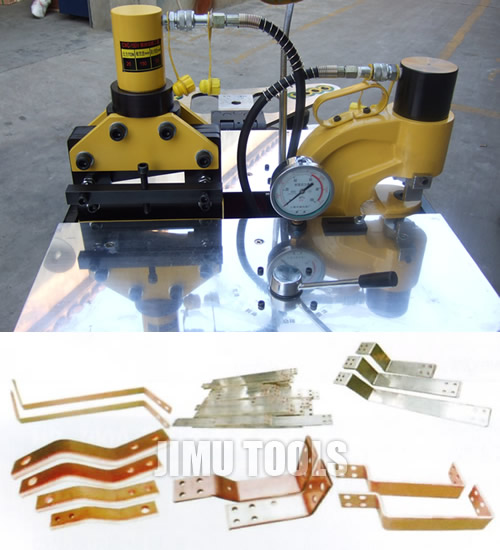

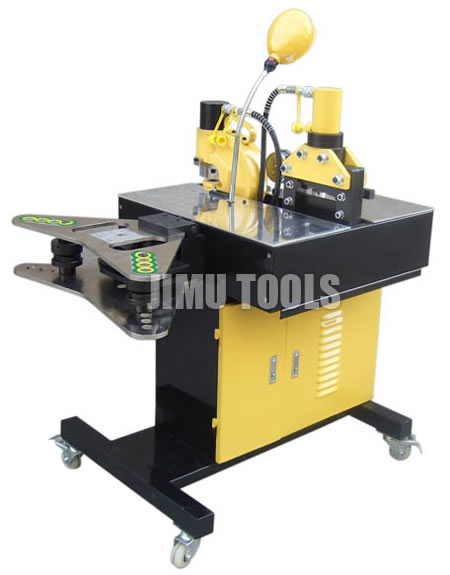

Four in one machine VHB-401 bus
Features: cutting, punching, bending flat legislation (which can take pressure machine), the local high flexibility, small size and strong function, high production capacity and efficiency. Is the production of electronic control box and a large transmission and distribution construction projects essential tool for construction site
Standard equipment:
VHB-401; electric hydraulic pumps, cutting, piercing, bending, vertical bending tools; (optional pressurized flower machine)
Hydraulic Tool Specifications:
¡ñ electric pump input voltage: single 50HZ, 220V
Rated hydraulic: 700kgf/cm2 (UHP safety valve setting) 10000 (Psi)
¡ñ Cutting row machine output: 30ton
Row range of cut (mm): copper and aluminum row of ≤ 200 × 12
¡ñ Punching Machine output: 35ton
The distance to the row of holes in the side: 110mm
Standard package punching die: Punch Φ7mm, Φ9mm, Φ10.5mm, Φ13.8mm, Φ17mm, Φ20.5mm
(Also die size can be customized according to demands long hole)
¡ñ Li, CB-125D bending tool bending, vertical bending two functions, aluminum, copper width 40,50,60,80,100,125 mm thickness 4,5,6,8,10,12.5 mm;
¡ñ Bus embossing machine: for bus: 150 × 12.5mm
Working stroke (mm): 30 after the bus voltage is smooth (or pattern neatly), far larger substation maintenance cycle (bus embossing machine is optional)
Features:
Model: VHB-401; This is a combination of multiple functions of the professional body design, perfect to avoid consideration of human waste, that is, provincial working hours, in line with established work processes, so that personnel engaged in handy, resulting in high efficiency, high quality perfect work;
¡ñ overall shape appearance, easy to move the surface paint and rust treatment by phosphoric acid skin mold, wear-resistant impact;
¡ñ precise guidelines four directions easy to operate valve
¡ñ hydraulic pump with pressure gauge shows the pressure to avoid the overload of work,
¡ñ Manual operation device remote control or foot switch, easy to use
¡ñ environmental surface treatment table, after grinding and chrome table, the table presents a smooth precision;
¡ñ 15cm affixed with the ruler, can get the job sizes up to standard parameters;
¡ñ hand adjustable board seat, for long and short size standards, a unified control practices;
¡ñ security firm, the foot switch that controls the forward, back to the oil;
