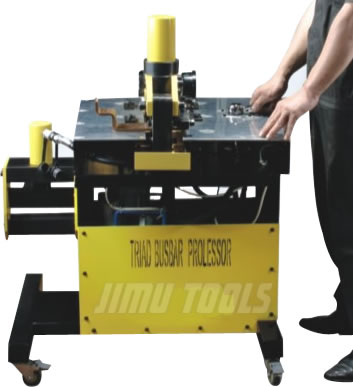

Item No:DHY-150 Busbar Processing Machine

This machine is the light of advanced products, and combined with the actual order to improve efficiency and ensure the operational safety requirements designed equipment.
Most suitable for large-scale production of electronic control box and transmission and distribution construction projects construction site use.
High flexibility, small size and strong function, high production capacity and efficiency.
Low-noise sound, beautiful and will not have finished processing the work environment pollution.
In addition to triple (curved row, punching, shearing) 3m outside the tubing to increase the other valve control can be equipped with crimp terminals, cut the cable, or embossing, etc., to achieve a machine.

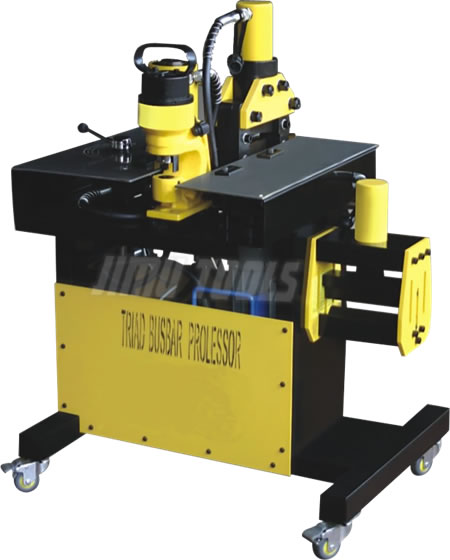

Triple busbar machine DYH-150
Features: cutting (CWC-150 or the CWC-150V), punching (CH-60), bending (CB-200A, or CB-150D) formed
Flow Table Size: 700mm (length) × 700mm (width) × 1200mm (H)
Input voltage: single 50HZ, 220V
Rated hydraulic: 700kgf/cm2 (UHP safety valve setting) 10000 (Psi)
Row machine cut output: 20ton
Row range of cut (mm): copper and aluminum row of ≤ 150 × 10
Curved row of machine output: 20ton
Bending range (mm): copper and aluminum row of ≤ 150 × 10
Bending angle: 0 degrees -90 degrees
Punching machine output: 31ton
The distance to the row of holes in the side: 95mm
Standard package punching die: Punch Φ7mm, Φ9mm, Φ10.5mm, Φ13.8mm, Φ17mm, Φ20.5mm
(Also die size can be customized according to demands long hole)
Weight: 170kg
