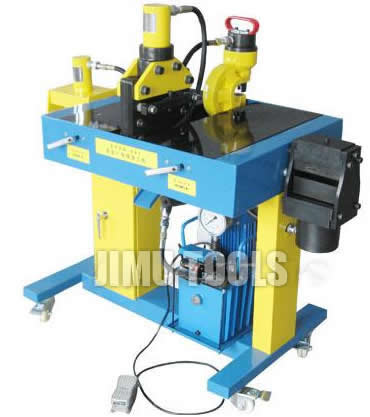

Detailed Description
DESCRIPTIONS:

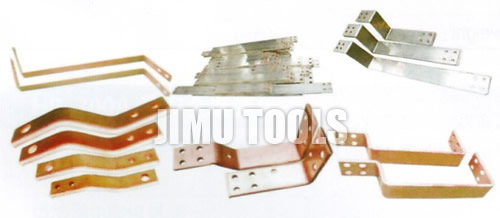

1.function: cutting, punching, horizontal bending, erect bending, conduit bending
2. workbench size: 800mmx 600mm x 770mm (LXWXH)
3. required input power: single phase 220V, 50HZ
4. control voltage: 12V
5. reted working oil pressure: 700kgf/cm2
6. cutting capacity: Cu/A1120mmx12mm
7. punching output: 27tons, 30tons.
8. distance from hole to busbar edge: 65mm, 70mm
9. cutting capacity-copper: dia.14mm-21mm, thickness 10mm
dia. 8mm-11mm, thickness 10mm
dia. less than 8mm, thickness 8mm. |
