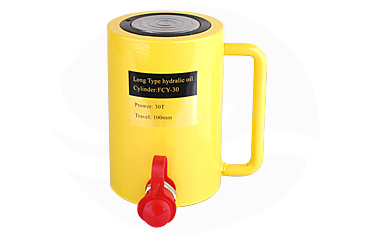

ITEM NO£ºRSC-30100
Tonnage ton(T) £º30
Work travel(mm) £º100
Cylinder Effective Area(cm2)£º41.8
Oil Capacity(L) £º0.416
Collapsed Height(mm) £º207
Extended Height(mm) £º307
Outside Dia. (Ømm) £º107
Cylinder Bore Dia.(Ømm) £º75
Plunger Dia(Ømm) £º68
Thread for input oil-port(zg)£º3/8"-19
Saddle Protrusion from Plgr.(mm) £º20
Weight(kg) £º12.5
|
