Model: SWG-4C

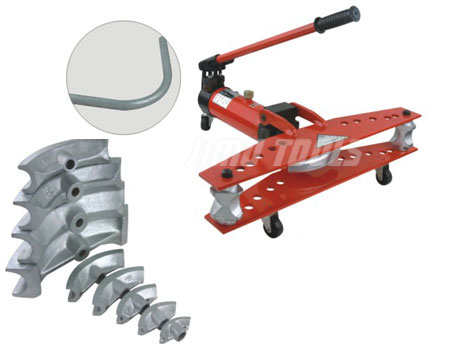

Name: The overall hydraulic pipe bender
Output: 21T
Maximum stroke: 370mm
Crimping range: 1 / 2 "-4"
OD: Φ21.3mm-Φ108mm
Configuration mold: 1 / 2 "3 / 4"1 "11 / 4"11 / 2 "2 " 21 / 2 "3" 4 "
Pipe wall thickness :2.75-6mm
Weight: 155kg
Size: 118x46x23cm

Use: for general pipe, conduit, gas pipe, thick steel pipe, the maximum bending angle of 90 degrees.
Ductile iron molds are used, than ordinary cast iron has higher strength, good toughness and ductility, more resistant to use, easy to break.
Quality assurance: within 3 months of non-human damage to the company to provide warranty service, ease of use.
