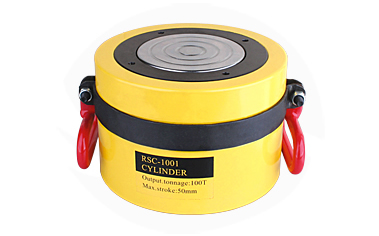

ITEM NO£ºRSC-10050
Tonnage ton(T) £º100
Work travel(mm) £º 50
Cylinder Effective Area(cm2)£º95
Oil Capacity(L) £º0.66
Collapsed Height(mm) £º136
Extended Height(mm) £º186
Outside Dia. (Ømm) £º175
Cylinder Bore Dia.(Ømm) £º130
Plunger Dia(Ømm) £º110
Thread for input oil-port(zg)£º3/8"-19
Saddle Protrusion from Plgr.(mm) £º 2
Weight(kg) £º23
|
