Product Name:

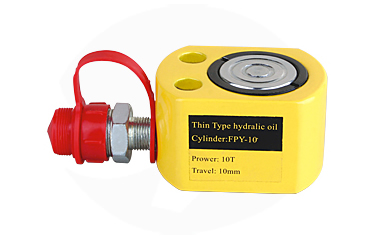

Super thin sings hydraulic cylinder

Descript:
RMC Super thin single hydraulic cylinder
Low height is suit for working in narrowness;Short stroke can block up times and times

The surface of plunger is finished with chrome plate to protect the using of longvity of the product.

Plunger has function of retracting automatically.

ITEM NO :RMC-101
Tonnageton(T)  :10
Work travel(mm) :11
Cylinder Effective Area(cm2)  :11.3
Oil Capacity(L)  : 0.016
Collapsed Height(mm)  : 47
Extended Height(mm) :58
Outside Dia. (Ømm)   :81*56
Cylinder Bore Dia.(Ømm)   :43
Plunger Dia(Ømm)   :38
Thread for input oil-port(zg)   : 3/8"-19
Saddle Protrusion from Plgr.(mm)  :2
Weight(kg) :1.5
