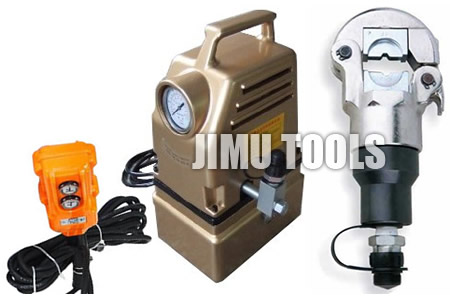

Name: Split Electric Hydraulic Crimping Tools

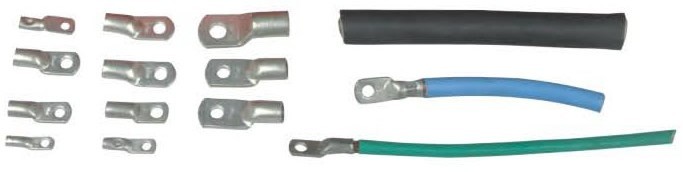

Crimping range :16-240mm2
Maximum pressure: 6T
Maximum stroke: 16mm
Mold configuration 16,25,35,50,70,95,120,150,185,240 mm2
Crimp form: confining pressure
¡ñ 3 meter wired remote control, solenoid valve control. ¡ñ output can control piston can be returned at any location. ¡ñ carbon brush electric small size and light weight. ¡ñ with a pressure gauge, the working pressure can be adjusted.
1, Model: CTE-25AG
Rated working pressure: high pressure 70MPa low pressure 7MPa
3, high pressure / low flow: 0.6L/min 3.5L/min
4, motor power: 600W
5, voltage: 220V
6, current: 3A
7 Frequency: 50Hz
8 speed: 1400r/min
Dimensions: 26 × 18 × 38CM
10 oil storage capacity: 4L
11, Weight: 15 kg
Function Description
The CTE-the 25AG series of electric pumps single-phase asynchronous motors, solenoid valves, high pressure pumps, tanks composed of ultra-high pressure oil pump with a small volume, high pressure, light weight, simple structure, the advantages of wired remote easy to use.
2, the pump in order to work pressure can be observed at any time to change, and ad hoc pressure gauge, so that users always observe the changes in the work. Control switches according to user needs, with manual switch or footswitch. With a pressure relief valve and solenoid valve
Features: high and low voltage out of fuel fast turbine blade suction up the most significant amount of oil.
4, the pressure relief valve overload protection device to avoid overloading destruction or excessive pressing 700kg/cm ² automatic pressure relief
5, the tubing can be any enough lengthened, with quick connectors. Before leaving factory equipped with high-pressure tubing: Φ16 × 2 meters a.
Tubing connector with 3/8 "thread.
7, double pump single oil line |
