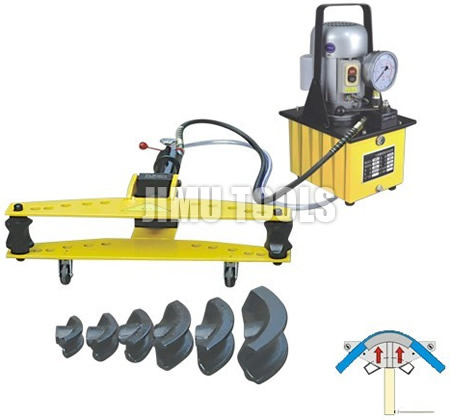

Product Name: electric hydraulic pipe bender
1, Model: DWG-4C
2, output: 20T
3 stroke: 380mm
4, the required amount of oil: 1800CC
5 crimping range: 1/2 "-4"
6, OD Series: Φ21.3 Φ26.8, Φ33.5, Φ42.3, Φ48, Φ60, Φ75.5, Φ88.5, Φ108mm
7, the configuration of the mold: 1/2 "3/4" 1 "11/4" 11/2 "2" 21/2 "3" 4 "
8, the pipe wall thickness :3.5-7mm
9 Weight: 114.5kg
Product Description
1, molds are made of spheroidal graphite cast iron, a higher strength than the ordinary gray cast iron, good toughness and ductility, more durable and not easily broken.
DWG series of sub body hydraulic pipe bender suitable for bending in the cold state under the conditions of low pressure liquid delivery welded pipe, welded steel pipes and general-purpose steel pipes, also applies to the bending of the same specifications diameter steel pipe; does not apply to the thin-walled tube , does not meet the elbow bend - outer diameter steel pipe and non-ferrous metal tube; applicable to the construction, chemical, plumbing, petroleum, coal, shipbuilding and other industries.
3, bent at an angle of a maximum of 90 degrees. 1/2 "-2" primary molding 90 degrees, 2 "-4" must move the tube bending, 5 times in order to achieve the curvature.
4, Quality Assurance: artificial damage within three months, we provide warranty service, please feel free to use.
5, tubing connector with PT3 / 8 "teeth
6, to be equipped with a manual pump or electric pump to use. Factory contain the pump, according to customer optional. |
