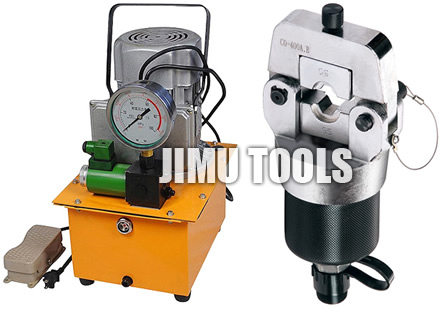

＃ Name: ECO-400B electric hydraulic clamp.

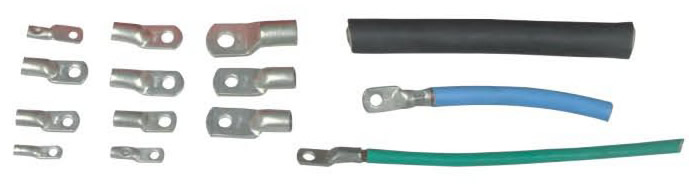

＃ Uses and Features: This product is a recently developed efficient practical hydraulic crimping tool. It uses the hydraulic power to promote increased lower mold, when the upper and lower mold contact, crimp completed. Copper and aluminum terminals, line the nose, clamp, overhead resistance Zhang casing, as well as underground cable crimp for transmission and distribution of indoor and outdoor projects. Hexagonal crimping the number of small, solid and reliable. 2 single-acting hydraulic power, easy to apply. 3. The tubing connector threaded for 3/8 "PT.
＃ with hydraulic pump: with single-acting hydraulic electric pump or manual hydraulic pump.
＃ Packaging: metal box
＃ Technical parameters:
Output (T): 17T
Crimping capacity (mm2) :50-400
Piston stroke (mm): 22
Size (mm): 270X100X90
Weight (kg): 5.0
Standard mold: 50,70,95,120,150,185,240,300,400 mm2 |
