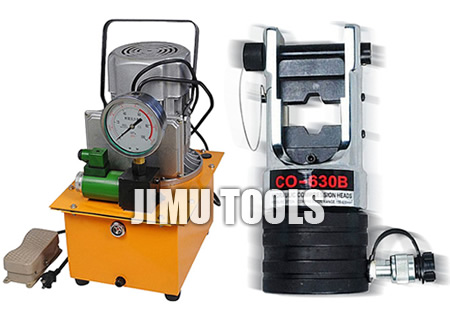

＃ Name: ECO-630B electric hydraulic clamp.

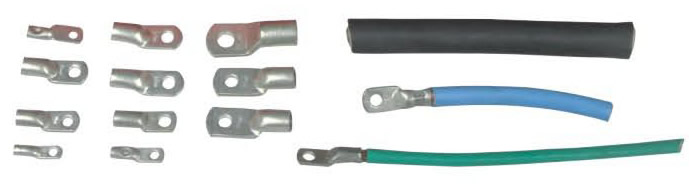

＃ Use: This product is a recently developed efficient practical hydraulic crimping tool. It uses the hydraulic power to promote increased lower mold, when the upper and lower mold contact, crimp completed. Copper and aluminum terminals, line the nose, clamp, overhead resistance Zhang casing, as well as underground cable crimp for transmission and distribution of indoor and outdoor projects.
＃ Features: 1. Crimping range 150-630mm2, crimping breadth, the number of small elongation can be controlled to reduce the deformation. 2 single-acting hydraulic power, easy to apply. 3 bolt connection can be quickly removed, Die positioning easier.
＃ with hydraulic pump: with single-acting hydraulic electric pump or manual hydraulic pump.
＃ Packing: wooden box
＃ Technical parameters:
Output (T): 30T
Crimping capacity (mm2) :150-630
Piston stroke (mm): 25
Size (mm): 270X130X100
Weight (kg): 11
Standard mold: 150,185,240,300,400,500,630 mm2 |
