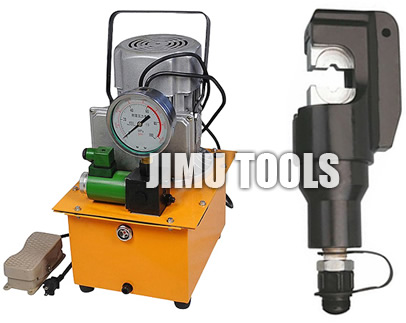

Uses features: ECYO-300 electro-hydraulic clamp is a recently developed efficient practical hydraulic crimping tool. It uses the hydraulic power to promote increased lower mold, when the upper and lower mold contact, crimp completed. Copper and aluminum terminal, cable lug and the cable crimp for indoor and outdoor of the transmission and distribution. Crimp breadth, the number of small elongation can be controlled to reduce the deformation. 2 single-acting hydraulic power, easy to apply.
＃ with hydraulic pump: with single-acting hydraulic electric pump or manual hydraulic pump.
＃ Packaging: metal box
＃ Technical parameters:
Output (T): 12T
Crimping capacity (mm2) :16-300
Piston stroke (mm): 22
Size (mm): 255X165X50
Weight (kg): 3.5

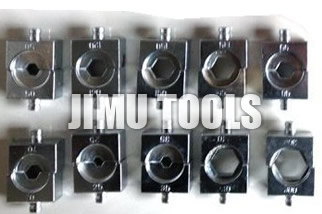

Standard mold: 16,25,35,50,70,95,120,150,185,240,300 mm2 |
