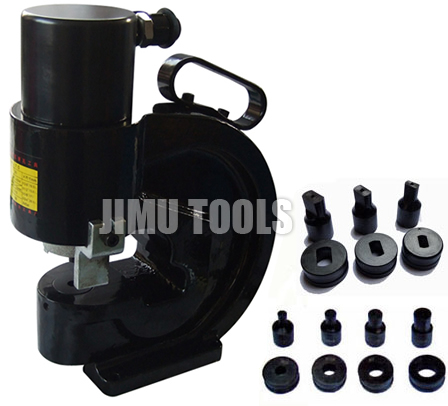

Name: CH-70B hydraulic drilling machine
Model: CH-70B
Details:
＃ Use features: CH-70B Split hydraulic punching machine is used for copper, aluminum row, iron and other metal materials, hydraulic punching tools.
1 punching speed and positioning accuracy. No dry sound, no chips, operating a safe and clean 2. Convenient to carry, suitable for field work or fixed at the factory for mass production. 3 single-hole back to the oil. The use of high-carbon tungsten alloy steel mold, stamping resistance, long life.
4 can produce a variety of shapes punching mold.
＃ Accessories: random with mold Φ10.5, Φ13.8, Φ17.5, Φ20.5 four pay. The rest of the mold to be made to order.
＃ Output: 35T
＃ Maximum punching thickness: copper, aluminum: 12mm; iron: 10mm
＃ Throat depth: 110mm
＃ Weight: 28kg

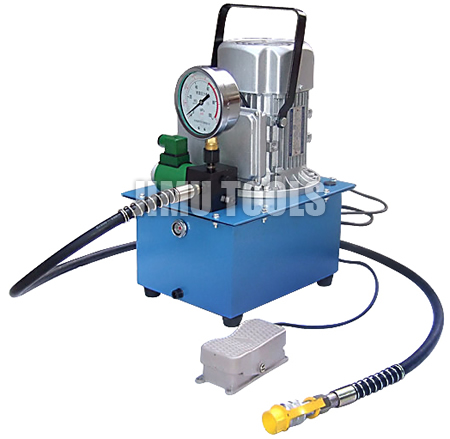

＃ Equipped with pump: one based on the need to use: manual pump, foot pump, hydraulic electric pump
＃ Packing: wooden box
|
