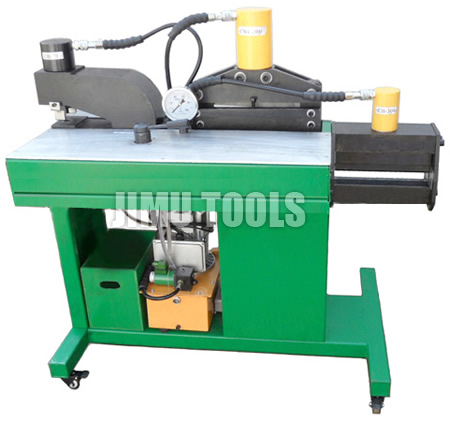

Name: VHB-300 three-position bus Machine Model: VHB-300
Details: # Uses and characteristics: VHB-300 three-position bus processing machine is a summary of many years of experience in the domestic design and development of a high-strength multi-bus processing machine. Punching, cutting row, bent row of the body are made of steel body wire cutting, durable, will not break. Suitable for large-scale plant and transmission and distribution work on-site construction, and power distribution equipment and switchgear and other electrical appliances factory use. Be cut off on the parent row, punching, bending and three-position processing, easy to operate, save time, high production efficiency. # Main Structure: This product is electric with solenoid valve hydraulic pump ZCB6-5-A, CH-70 punching machines, CWC-300 cut row machine, CB-300A curved row of machines, workstations, switches and other components. 1 hydraulic electric pump ZCB6-5-A: high pressure, low noise, stable, foot switch. Single phase: 220V, rated working pressure: 70MPa. 2.CH-70 punching machines: to contribute to 35T, throat depth: 160mm, maximum thickness of copper processing 12mm, standard with the mold: Φ10.5, Φ13.8, Φ17.5, Φ20.5 four pay, the other can be do party mode and strip molds. 3.CWC-300 cut row machine: output: 20T, processing capacity: 300mm wide X12mm thick copper. 4.CB-300A curved row machine: output: 20T. Processing capacity: 300mm width X12 mm thick, angle 0-90 degrees. # use: First, ready to processed products, bottles and the corresponding die each station, the workpiece into the die cavity, rotating three-position switch to specify a station to open the electric hydraulic pump, or manually using the foot switch work, and then turned to the next station to complete the work. # flow table size: 1200mmX750mmX1100mm # Weight: 280kg # Packing: wooden box
|
