Specifications:
Maximum input pressure: 70Mpa
Oil volume required: 135cc
Output force: 10T
Size: 300(L)mm
Weight:10.0kg
Remarks: Cutting of piano wire is prohibited.
Cutting capacity
Wire rope 6×7: 32mm
Wire rope 6×12: 32mm
Wire rope 6×19: 32mm
Soft steel bar: 25mm
Reinforcing rod: 25mm
Cu strands:32mm
Al strands:32mm
ACSR:32mm
Guy wire 1×7:32mm
Guy wire 1×19:32mm
CCP cable:N/A

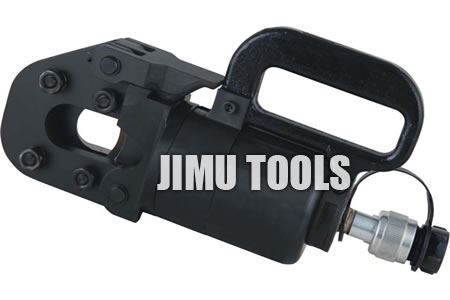

Remote Control Hydraulic Cutters
The CPC-32H hydraulic cutter head features:
1.Fast cutting with remote operation
2.It can be operated by any hydraulic pump with rated oil pressure of 70Mpa(10,000PSI)
3.Equipped with PT3/8" threaded high pressure couples
4.PT-NPT adapters are available on request for NPT3/8" threaded couplers
5.Blades are easily replaceable
6.Flip-top latch for easy insertion of cutting material
7.Cut heavy duty steel materials up to 32mm
|
