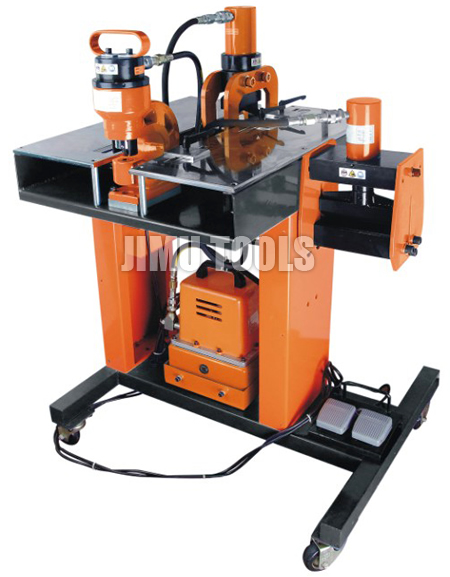

Function:
1, copper, aluminum row segments, punching, bending machine triple bus
2, for small and medium size transformers, switch boxes or assembled on-site production lines with irregular size of the bus as a processing
3, punching without burr, cutting surface is smooth, precise angles can be quickly repeated a large number of processing
4, four-position switch precise valve control guidelines for the proper use of want to punch, curved panels, the position of cut
5, the security firm, the foot switch that controls the forward, back to oil.
Features: cutting, punching, bending
Input voltage / control voltage: single phase 50HZ, 220V
Rated hydraulic: 700kgf/cm2 (pressure relief valve setting)
Row machine cut output: 20ton
Cut row capacity: copper / aluminum row 150mm × 12mm
Punching machine output: 31ton or 35ton
The distance to the edge emission of air: 95mm or 110mm
Punching capacity - copper / aluminum row: §¶7-21 thickest (Max.Thickness): 12mm
Standard package punching die: §¶7, §¶9, §¶10.5, §¶13.5, §¶17.5, §¶20.5mm
Curved row of machine output: 20ton
Bending capacity: 150 × 12 mm
Weight: 150kg
Flow Table Size: 800mm (length L) × 600mm (width W) × 770mm (high H) |
