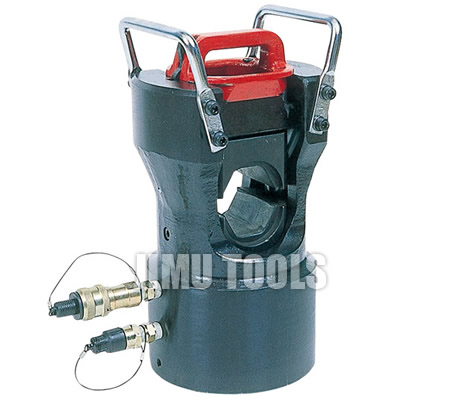

• Product Name: EP-100W double acting hydraulic crimping machine
• Product Model: EP-100W
1,110 KV-720KV overhead ACSR and strand crimping; the middle of connecting tubes, Clamp.
2 crimp clamp substation equipment.
3,35 KV-220KV large cross-section area of cable crimping.
Product parameters
The force 100TON
Weight 33kg
22mm piston stroke
Crimp range 150,185,240,300 LGJ
Maximum diameter steel Ø36mm, Ø76mm copper and aluminum
|
