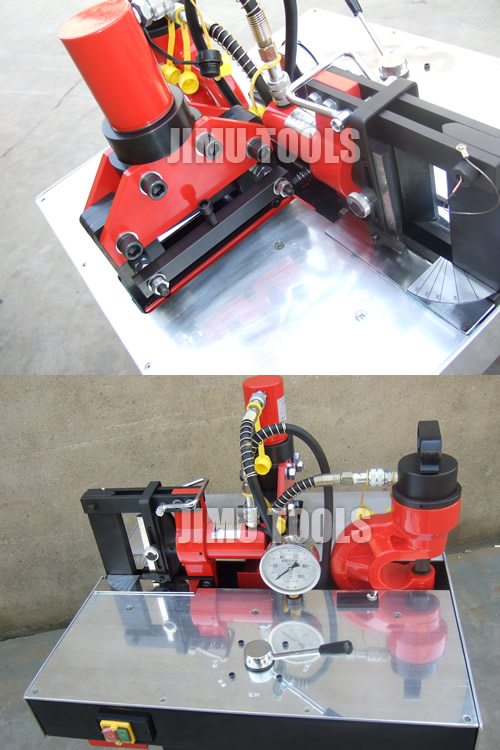

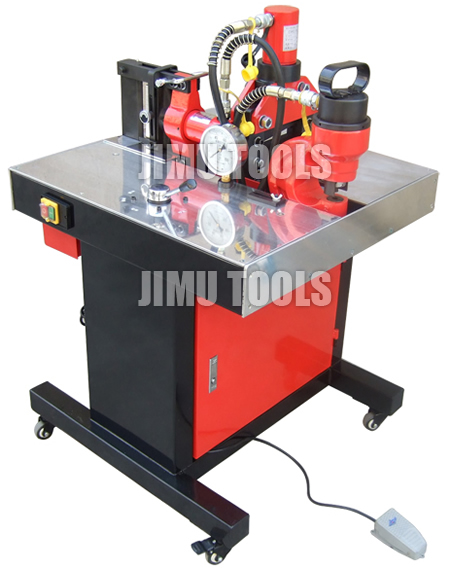

Item No:DHY-150D Busbar Processor Machine
This machine is the light of foreign advanced products, combined with the domestic reality as to enhance efficiency and ensure the operational safety requirements designed to ancillary facilities.
Most suitable for large scale production of electronic control box and transmission and distribution construction projects, construction site use.
High flexibility, small size and strong function, high productivity and efficiency.
Low-noise sound, processing and finished product appearance and would not impose the work environment pollution.

Triple bus processing machine DHY-150D
Function: cut (CWC-150), punching (CH-60 or CH-70), flat bend (CB-150D) formed
Mobile Table size: 700mm (length) × 700mm (width) × 1100mm (H)
Input voltage: single-50HZ, 220V
Rated hydraulic: 700kgf/cm2 (ultra-high pressure safety valve settings) 10000 (Psi)
Cut row machine contribute to: 20ton
Cut row range (mm): copper and aluminum row of ≤ 150 × 12
Curved row of machines to contribute to: 20ton
Flat bend range (mm): copper and aluminum row of ≤ 150 × 12
Flat bend angle: 0 ° -135 °
Punching Machine Output: 31ton
Hole edge to row distance: 95mm/110m
Standard matching Punching Die: punching Φ7mm, Φ9mm, Φ10.5mm, Φ13.8mm, Φ17mm, Φ20.5mm
Machine Weight: 165kg
