This machine is the light of advanced products, and combined with the actual order to improve efficiency and ensure the operational safety requirements designed equipment.
Suitable for transmission and distribution in a large workshop and site construction work, and power distribution equipment and switchgear and other electrical appliances factory use.
High flexibility, small size and strong function, high production capacity and efficiency.
Low-noise sound, beautiful and will not have finished processing the work environment pollution.

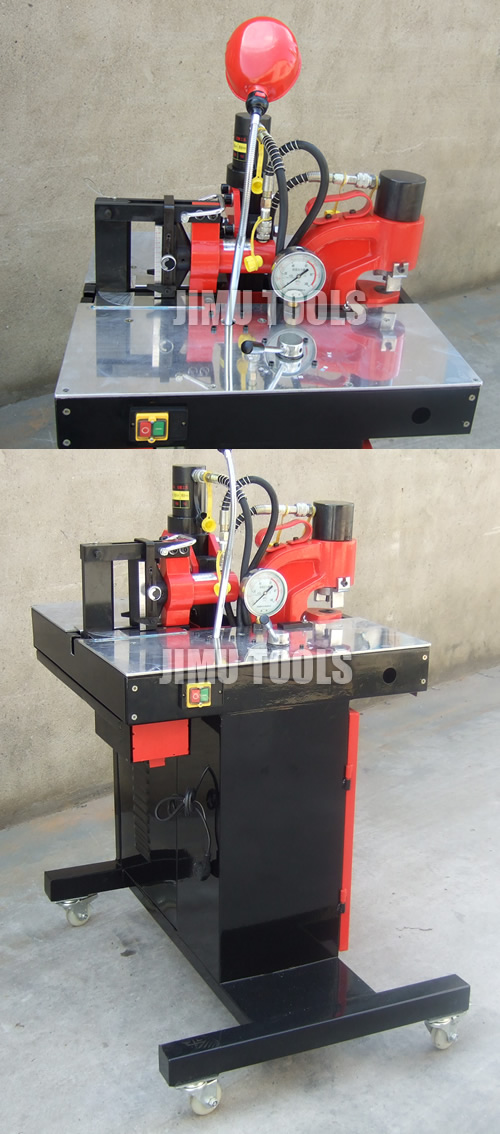

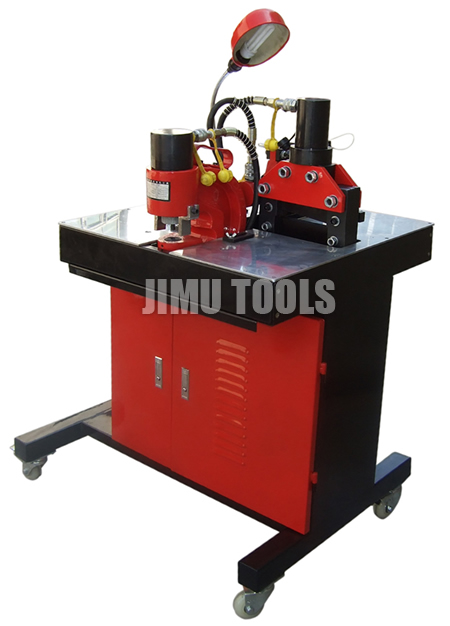

Triple bus machine VHB-150D
Features: cutting (CWC-150), punching (CH-60 or CH-70), bending (CB-150D) composed of combinations in the same plane.
Flow Table Size: 700mm (length) × 700mm (width) × 1200mm (H)
Input voltage: single 50HZ, 220V or 380V
Rated hydraulic: 700kgf/cm2 (UHP safety valve setting) 10000 (Psi)
Row machine cut output: 20ton
Row range of cut (mm): copper and aluminum row of ≤ 150 × 12
Curved row of machine output: 20ton
Bending range (mm): copper and aluminum row of ≤ 150 × 12
Bending angle: 0 ° -135 °
Punching machine output: 35ton
The distance to the hole in the side row: 95mm/110m
Standard package punching die: Punch Φ7mm, Φ9mm, Φ10.5mm, Φ13.8mm, Φ17mm, Φ20.5mm
Weight: 185kg
|
